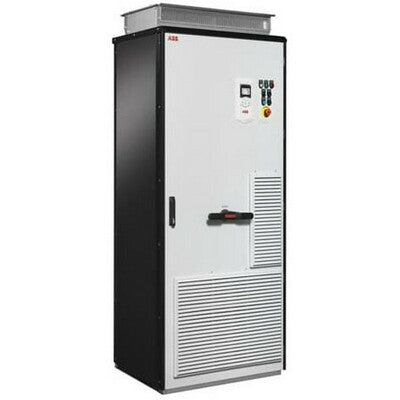

ABB VSD/VFD - ACS880 - 3P - 380-500Vac - 302A / 270HP / 250HP
SKU ACS880-07-0302A-5+B054+C129+E205
por ABB
Precio original
$34,115.00
-
Precio original
$34,115.00
Precio original
$34,115.00
$34,115.00
-
$34,115.00
Precio actual
$34,115.00
Precio en Dólares Americanos - IVA Incluido
Tiempo de Entrega: Consultar en ventas@sasecontrols.com o Wh 686-5268992
Enclosed Variable Speed/Frequency Drive (VSD/VFD) / Inverter with Assistant control pnl. + UL/cUL certification + du/dt output filters - ATEX compliant - ABB (ACS880 series) - Rated input voltage 380Vac-500Vac (3-phase / 3P) - Rated current 302A (LD Light-Duty; 500Vac) - Rated power 200kW (LD Light-Duty; 500Vac) / 250HP (LD Light-Duty; 500Vac) - IP42 / UL type 1 - Frame size R9 - with Modbus RTU / Modbus communication capability - Floor freestanding mounting - with built-in 6-pulse rectifier + Choke + Safe Torque Off (STO) + Direct Torque Control (DTC) - compatible with input voltages 380Vac-500Vac (400Vac / 415Vac / 440Vac / 480Vac) (3-phase / 3P) - item code #3AUA0000220178 - equivalent to ACS880070302A5B054C129E205
DATA SHEET
