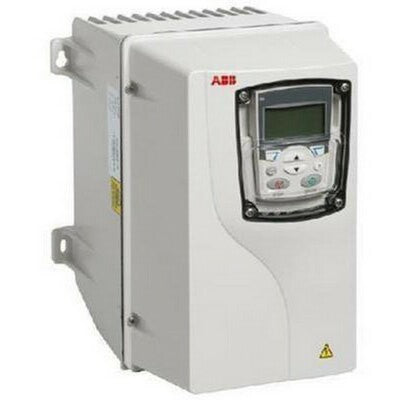

ABB VSD/VFD - ACS355 - 3P - 380-480Vac - 1.9A / 0.75 HP
SKU ACS355-03U-01A9-4+B063+N828
por ABB
Precio original
$905.00
-
Precio original
$905.00
Precio original
$905.00
$905.00
-
$905.00
Precio actual
$905.00
Precio en Dólares Americanos - IVA Incluido
Tiempo de Entrega: Consultar en ventas@sasecontrols.com o Wh 686-5268992
Enclosed Variable Speed/Frequency Drive (VSD/VFD) / Inverter for solar pumping stations with Assistant control pnl. + IP66 / UL type 4X + brk. chopper - for starts in low ambient temp. - ABB (ACS355 series) - Rated input voltage 380Vac-480Vac (3-phase / 3P) - Rated current 1.9A (I2N; 380-480Vac) - Rated power 0.55kW (nom.; 380-480Vac) / 0.75HP / 3/4HP (nom.; 380-480Vac) - IP66 / UL type 4X - Frame size R1 (IP66/67/UL 4X) - Surface / wall mounting - with built-in MPPT (the most power output possible) + Built-in sens.less flow calculation - compatible with input voltages 380Vac-480Vac (400Vac / 415Vac / 440Vac) (3-phase / 3P) - item code #3AUA0000176853 - equivalent to ACS35503U01A94B063N828
DATA SHEET
